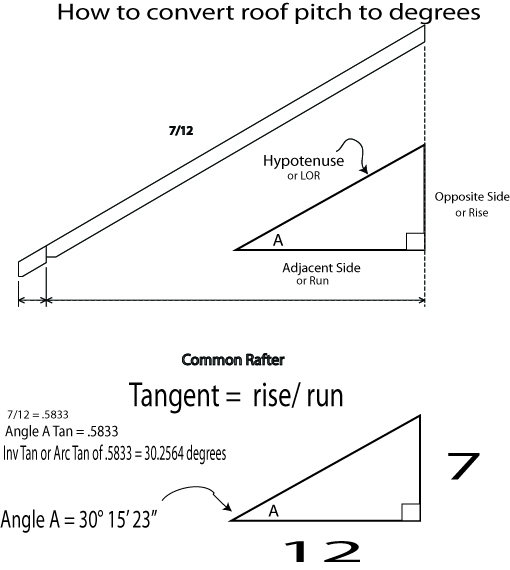

Printable Roof Pitch Chart – Roof pitch to degrees • degrees to roof pitch • reference charts. Roof pitch is a measure of a roof’s steepness, or how much it slants upwards. Roof pitch chart the roof's pitch is its vertical rise divided by its horizontal span (or run), what is called slope in geometry and stair construction, or the tangent function in trigonometry. Roof pitch angles run rise slope pitch angle pitch = rise run.

Faq's What Does Roof Pitch Mean? Custom Barns And Buildings The

See a wide range of roof pitches ranging from 0/12 to 21/12. Hold this card at arm’s length and “sight” the slopes to find a match. $$pitch = {rise \over run}$$ in the form x/12 $$angle = arctan {rise \over run} = arctan (pitch)$$

Again, To Clarify, This Will Help You Determine Which Roof Vents Are Right For Your Roof.

Roof pitch diagram chart how to determine roof pitch 0/12 0 degrees 2/12 9.46 degrees 4/12 18.43 degrees 6/12 26.57 degrees 8/12 33.69 degrees 10/12 39.81 degrees 12/12 45 degrees 13/12 47.29 degrees 14/12 49.4 degrees 15/12 51.34 degrees. Need to know how to measure your roof slope and pitch? Click here to view avp's roof pitch diagram chart.

The Roof Pitch Chart Contains A Diagram Illustrating Different Roof Shapes, And A Table Of Associated Values Of The Slope (With Conversion To An Angle) And Multiplier.

Includes a roof pitch chart that shows the relative steepness of common roof pitches. Ways to express roof slope: Download this visual diagram chart to help you calculate the rise and span of your roof.

Determine Roof Pitch By Dividing The Roof’s Vertical Rise From Its Horizontal Run.

Roof pitch diagram chart 925 s. This measurement will tell you the number of inches your roof rises in 12 inches of run. You can be any distance from the existing roof structure, as long as you can see the slope.

Print This Page And Cut Along The Outline Shown For Roof Pitches 4/12 To 16/12.

This article explains the various uses and aspects of roof pitch. Quickly determine roof pitch with the free, print roof pitch chart template. Customize, download, plus have the right pitch for the work!
